F = ma (First 10)
Kinematics
FMA-2011-02 · 2011 F = ma (AAPT)

2011 F = ma Exam — Question 2

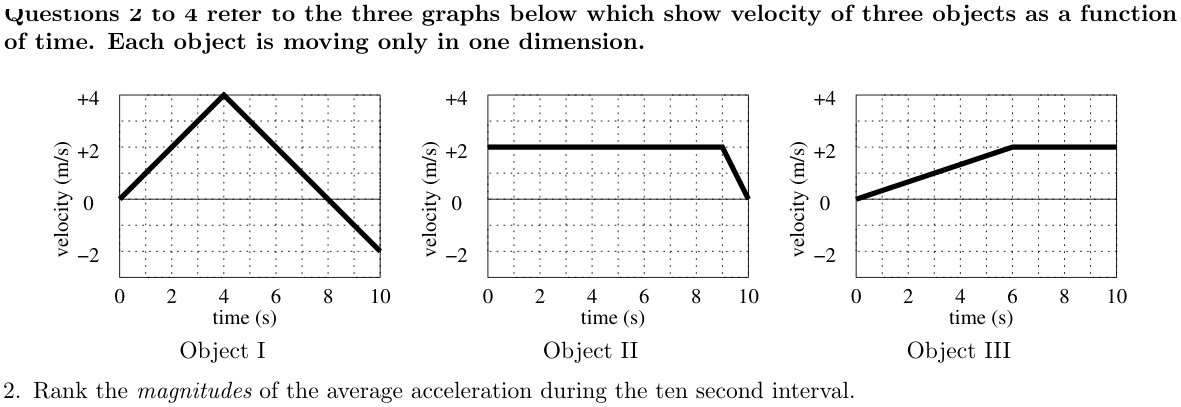

Questions 2 to 4 refer to the three graphs below which show velocity of three objects as a function of time. Each object is moving only in one dimension. 0 2 4 6 8 10 −2 0 +2 +4 velocity (m/s) time (s) 0 2 4 6 8 10 −2 0 +2 +4 velocity (m/s) time (s) 0 2 4 6 8 10 −2 0 +2 +4 velocity (m/s) time (s) Object I Object II Object III 2. Rank the magnitudes of the average acceleration during the ten second interval.
Source: Question 2, 2011 F = ma Exam, © 2011 American Association of Physics Teachers (AAPT) and the U.S. Physics Team. Adapted by PhysicsTrainer: reformatted into a separate question and answer choices for online multiple-choice practice; any shared setup from nearby questions is repeated here. Not affiliated with or endorsed by AAPT or the U.S. Physics Team.
