FMA-2018B-15 · 2018B F = ma (AAPT)

2018 F = ma Exam B — Question 15

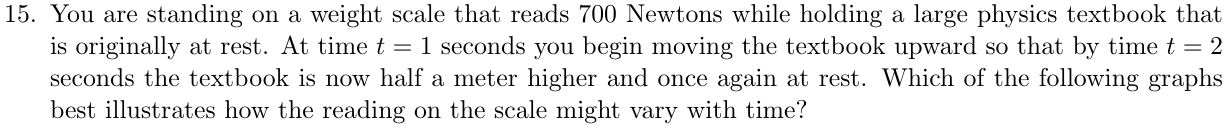

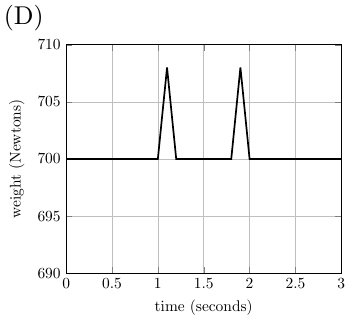

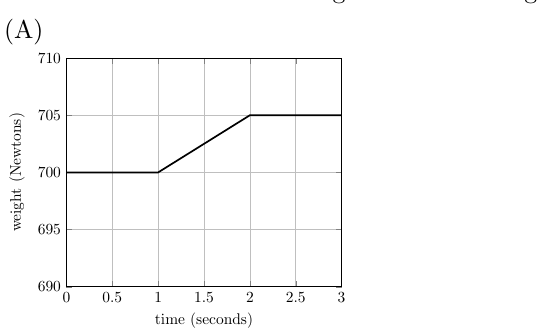

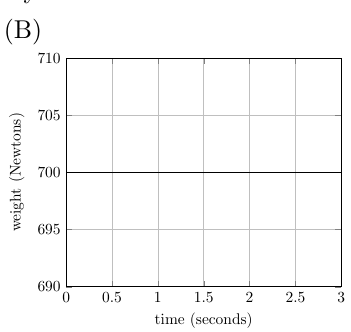

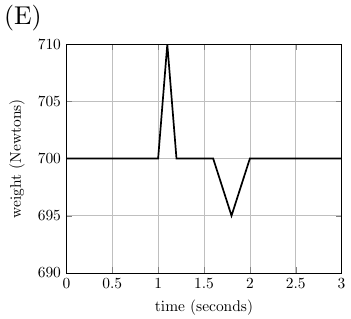

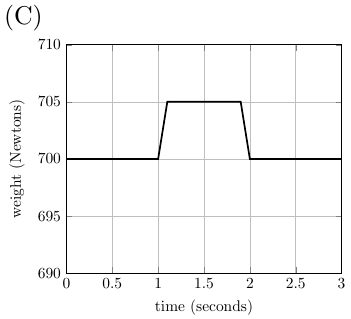

You are standing on a weight scale that reads 700 Newtons while holding a large physics textbook that is originally at rest. At time t = 1 seconds you begin moving the textbook upward so that by time t = 2 seconds the textbook is now half a meter higher and once again at rest. Which of the following graphs best illustrates how the reading on the scale might vary with time?
Source: Question 15, 2018 F = ma Exam B, © 2018 American Association of Physics Teachers (AAPT) and the U.S. Physics Team. Adapted by PhysicsTrainer: reformatted into a separate question and answer choices for online multiple-choice practice; any shared setup from nearby questions is repeated here. Not affiliated with or endorsed by AAPT or the U.S. Physics Team.
