2020 F = ma Exam A — Question 14

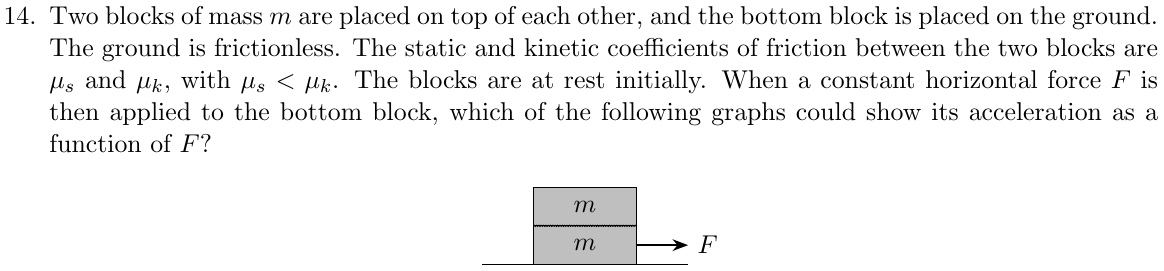

Two blocks of mass m are placed on top of each other, and the bottom block is placed on the ground. The ground is frictionless. The static and kinetic coefficients of friction between the two blocks are µs and µk , with µs < µk . The blocks are at rest initially. When a constant horizontal force F is then applied to the bottom block, which of the following graphs could show its acceleration as a function of F ? m m F a a — Source: Question 14, 2020 F = ma Exam A, © 2020 American Association of Physics Teachers (AAPT) and the U.S. Physics Team. Adapted by PhysicsTrainer: reformatted into a separate question and answer choices for online multiple-choice practice; any shared setup from nearby questions is repeated here. Not affiliated with or endorsed by AAPT or the U.S. Physics Team.
