FMA-2020B-18 · 2020B F = ma (AAPT)

2020 F = ma Exam B — Question 18

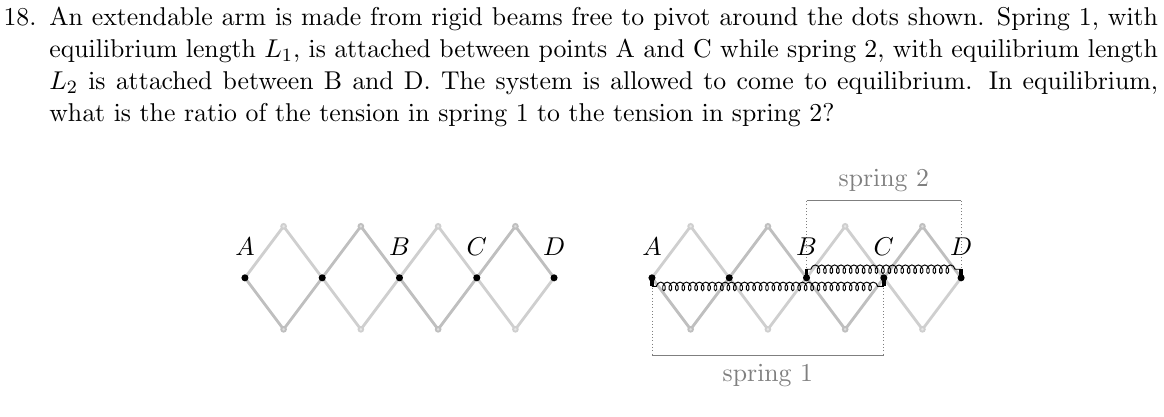

An extendable arm is made from rigid beams free to pivot around the dots shown. Spring 1, with equilibrium length L1 , is attached between points A and C while spring 2, with equilibrium length L2 is attached between B and D. The system is allowed to come to equilibrium. In equilibrium, what is the ratio of the tension in spring 1 to the tension in spring 2? spring 2 A B C D A B C spring 1
Source: Question 18, 2020 F = ma Exam B, © 2020 American Association of Physics Teachers (AAPT) and the U.S. Physics Team. Adapted by PhysicsTrainer: reformatted into a separate question and answer choices for online multiple-choice practice, with answer choices retyped; any shared setup from nearby questions is repeated here. Not affiliated with or endorsed by AAPT or the U.S. Physics Team.
