FMA-2026-03 · 2026 F = ma (AAPT)

2026 F = ma Exam — Question 3

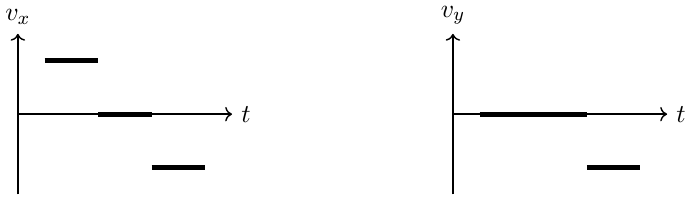

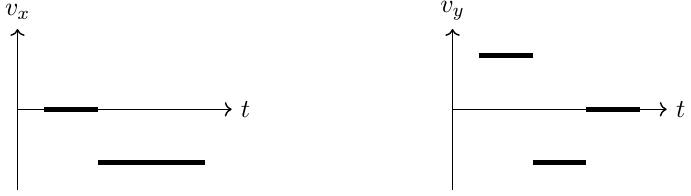

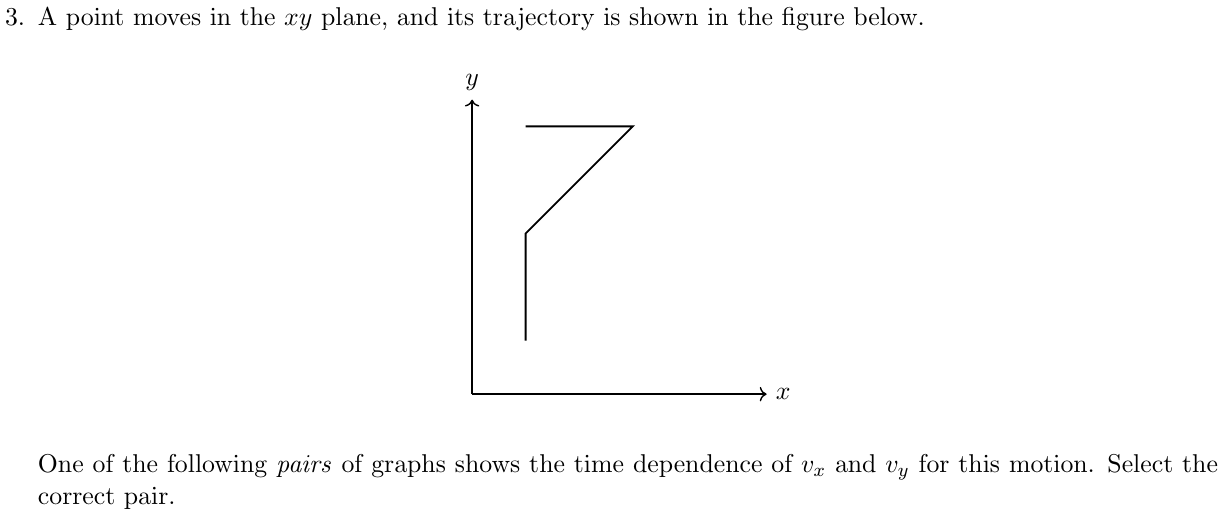

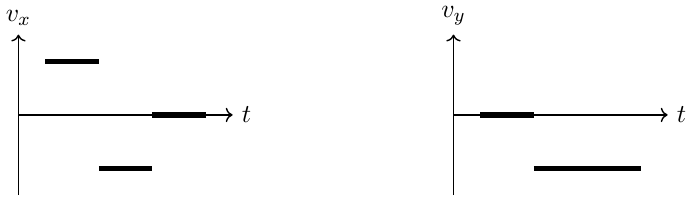

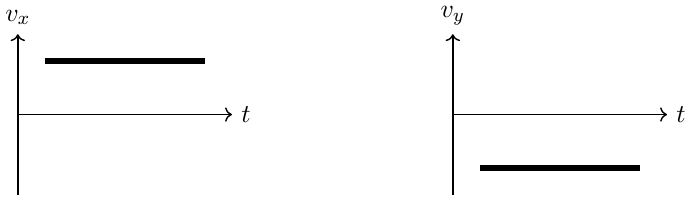

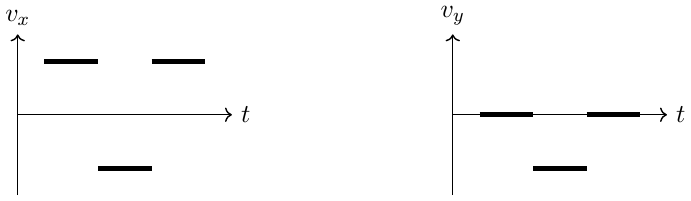

A point moves in the xy plane, and its trajectory is shown in the figure below. y x One of the following pairs of graphs shows the time dependence of vx and vy for this motion. Select the correct pair. vy vx t t — Source: Question 3, 2026 F = ma Exam, © 2026 American Association of Physics Teachers (AAPT) and the U.S. Physics Team. Adapted by PhysicsTrainer: reformatted into a separate question and answer choices for online multiple-choice practice; any shared setup from nearby questions is repeated here. Not affiliated with or endorsed by AAPT or the U.S. Physics Team.
