Back to Problems

F = ma (Final Problems)

Rotation

FMA-2026-20 · 2026 F = ma (AAPT)

2026 F = ma Exam — Question 20

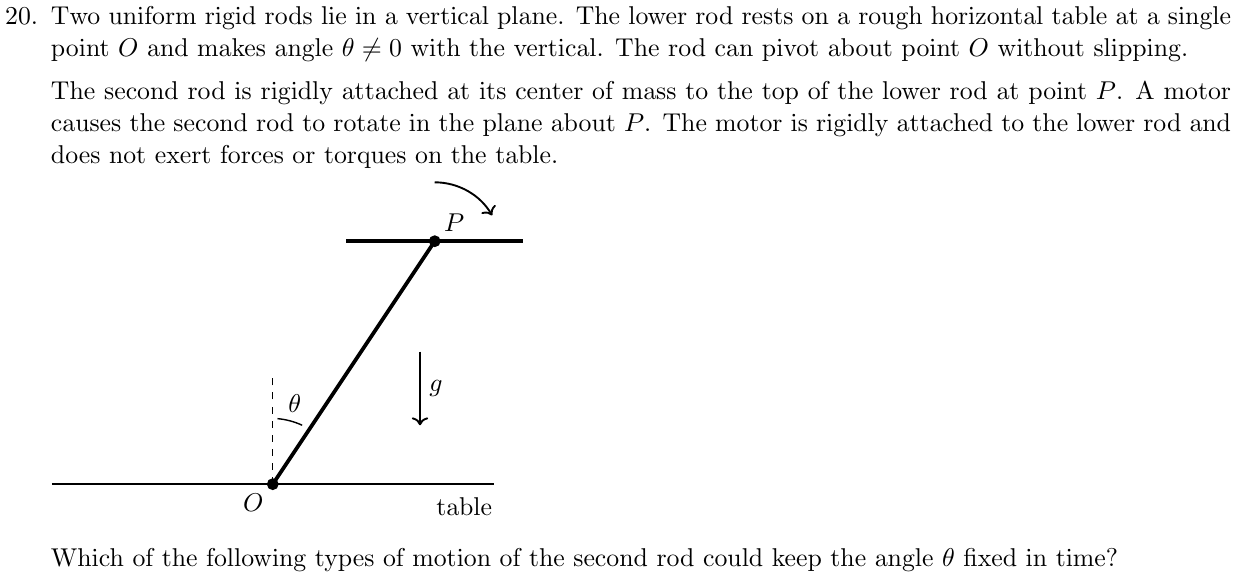

Two uniform rigid rods lie in a vertical plane. The lower rod rests on a rough horizontal table at a single point O and makes angle θ ̸= 0 with the vertical. The rod can pivot about point O without slipping. The second rod is rigidly attached at its center of mass to the top of the lower rod at point P . A motor causes the second rod to rotate in the plane about P . The motor is rigidly attached to the lower rod and does not exert forces or torques on the table. P θ O g table Which of the following types of motion of the second rod could keep the angle θ fixed in time? — Source: Question 20, 2026 F = ma Exam, © 2026 American Association of Physics Teachers (AAPT) and the U.S. Physics Team. Adapted by PhysicsTrainer: reformatted into a separate question and answer choices for online multiple-choice practice; any shared setup from nearby questions is repeated here. Not affiliated with or endorsed by AAPT or the U.S. Physics Team.
